FAB
Product Features
Low Noise: Under 65db.
Low Backlash: Single-stage≤1 arcmin; Dual-stage≤3 arcmin.
High Efficiency: Single-stage≥95%; Dual-stage≥92%.
High Input Speed: Up to 8000 RPM.
High Torque: High output torque density.
High Stability: Employs high tensile strength alloy steel.Gear hardening is made for the entire gear instead of only surface hardening.which extends gear service life and maintain high accuracy as new after a long period of operation.
High Speed Reduction Ratio: The gear reducer is a modular design. The planetary gear box can be connected.Speed reduction ratio is over 1:1000.
Motor Parameters
-

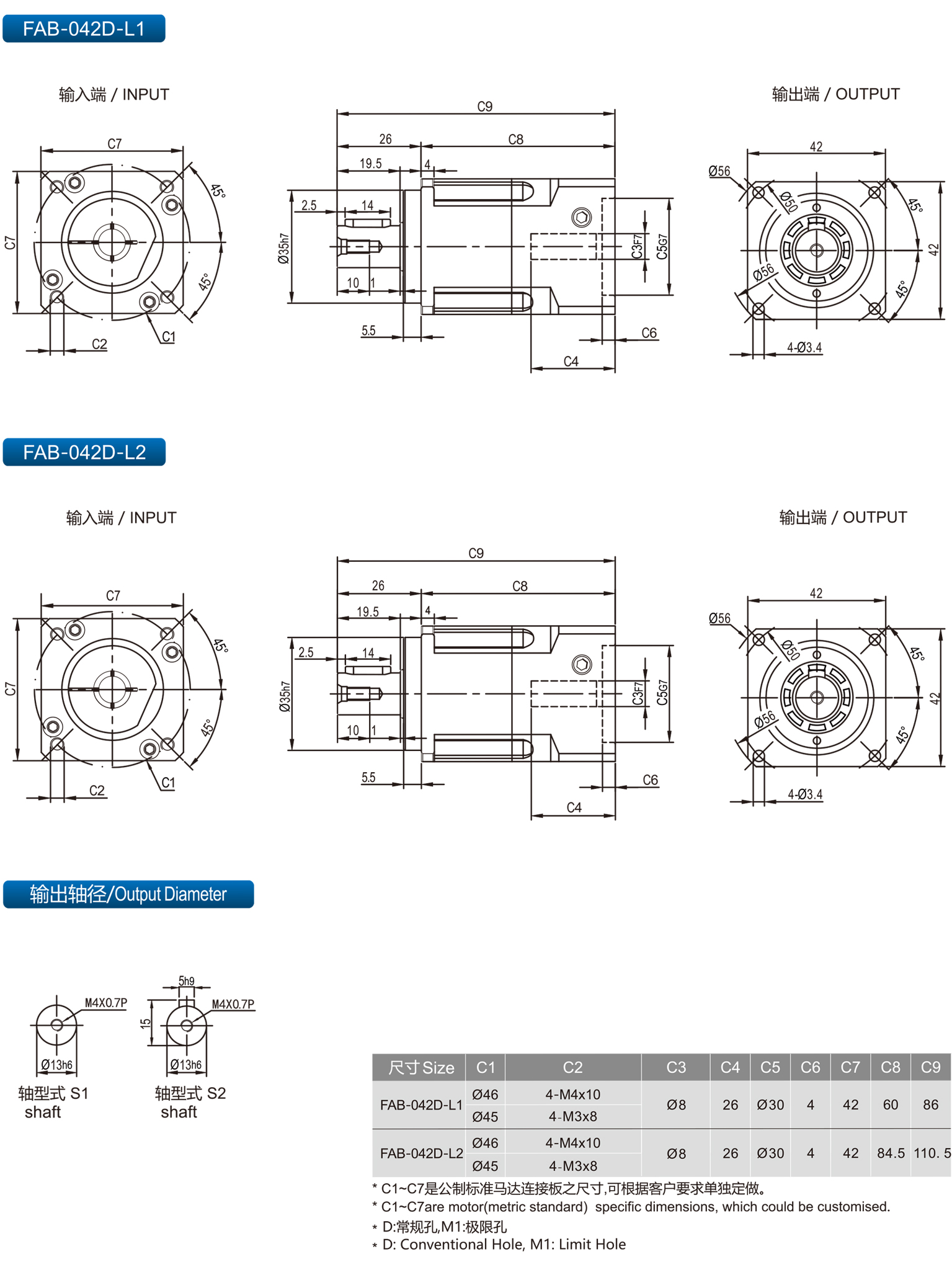

042D
-

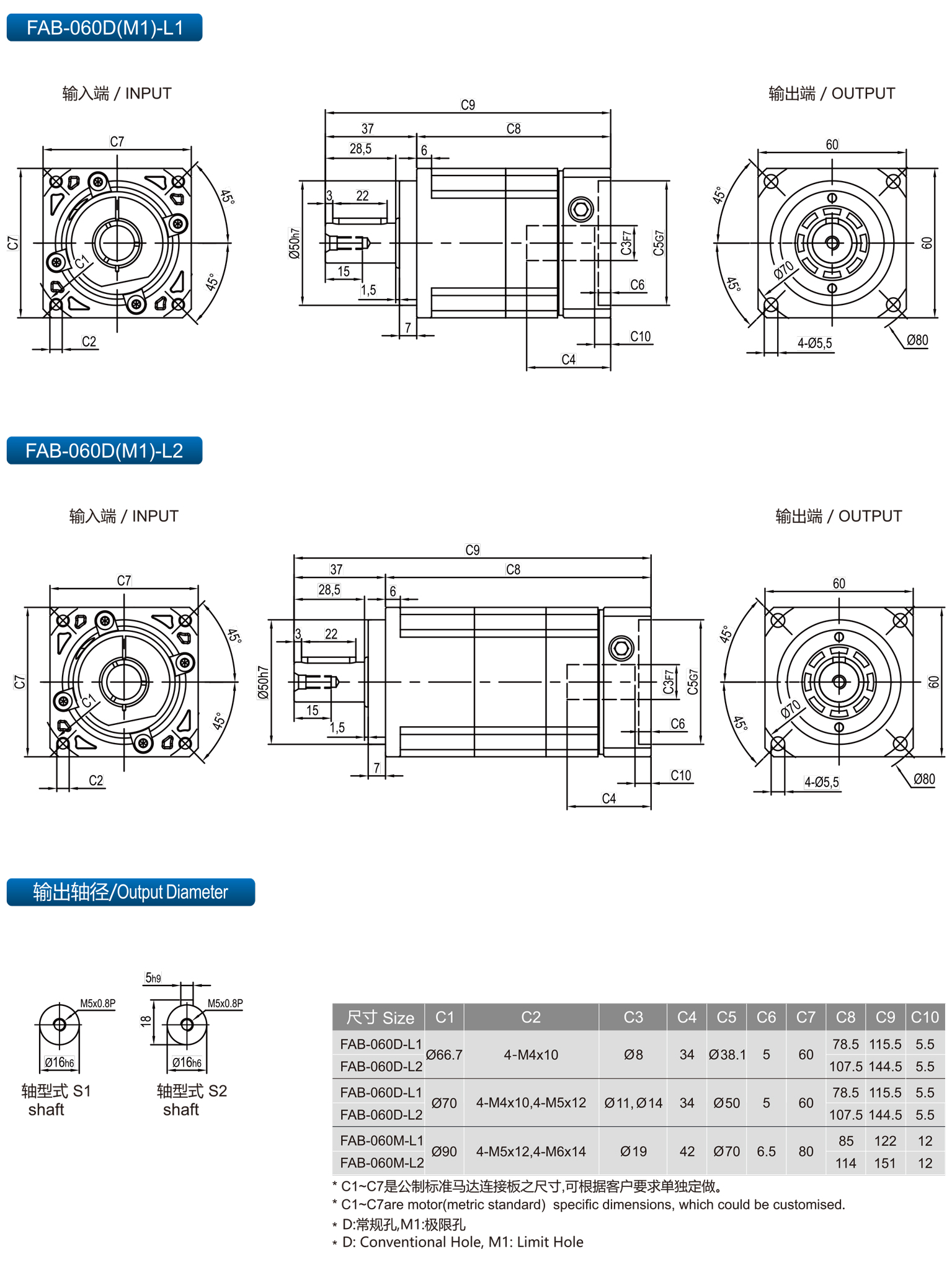

060D
-

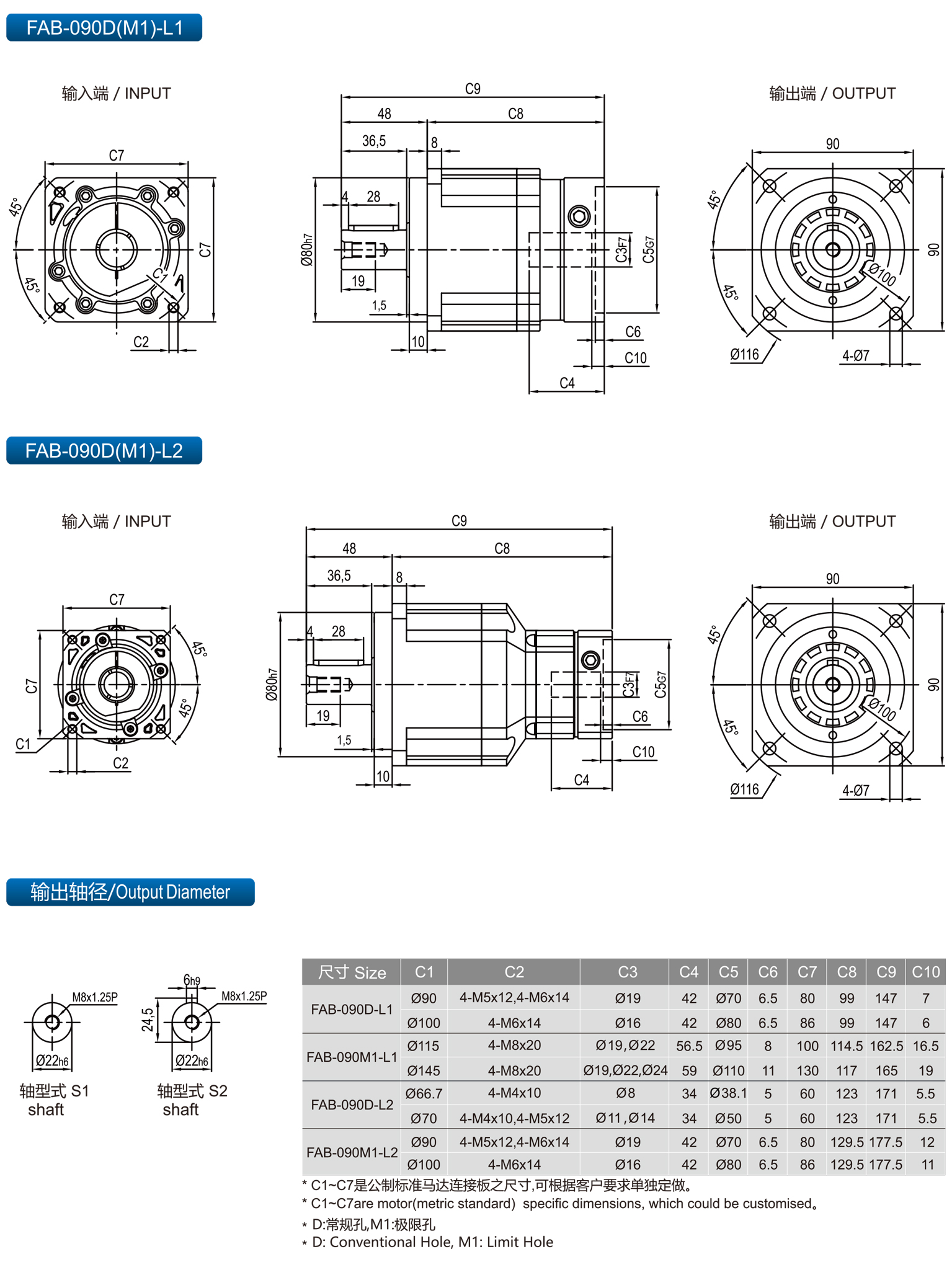

090D
-

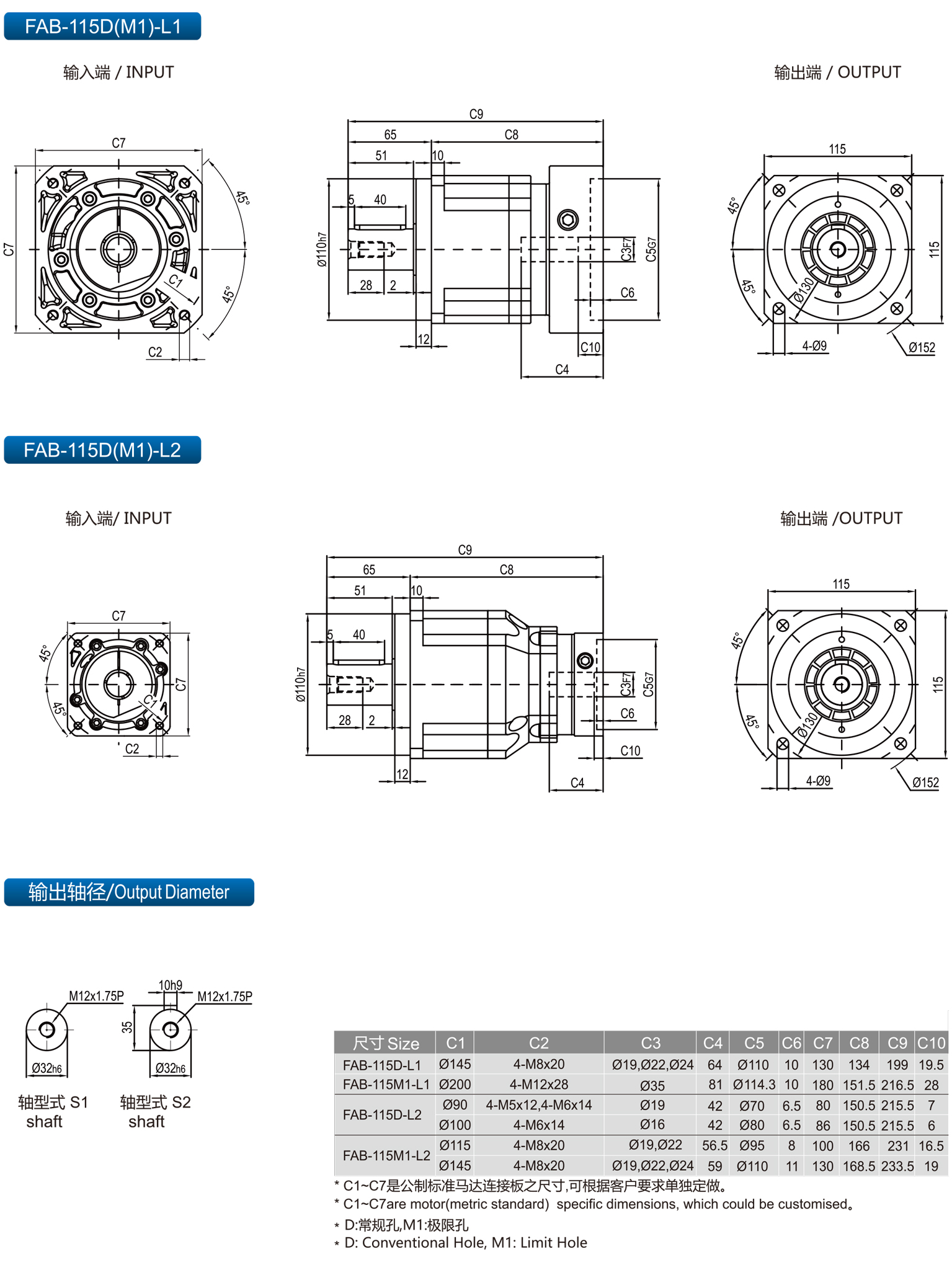

115D
-

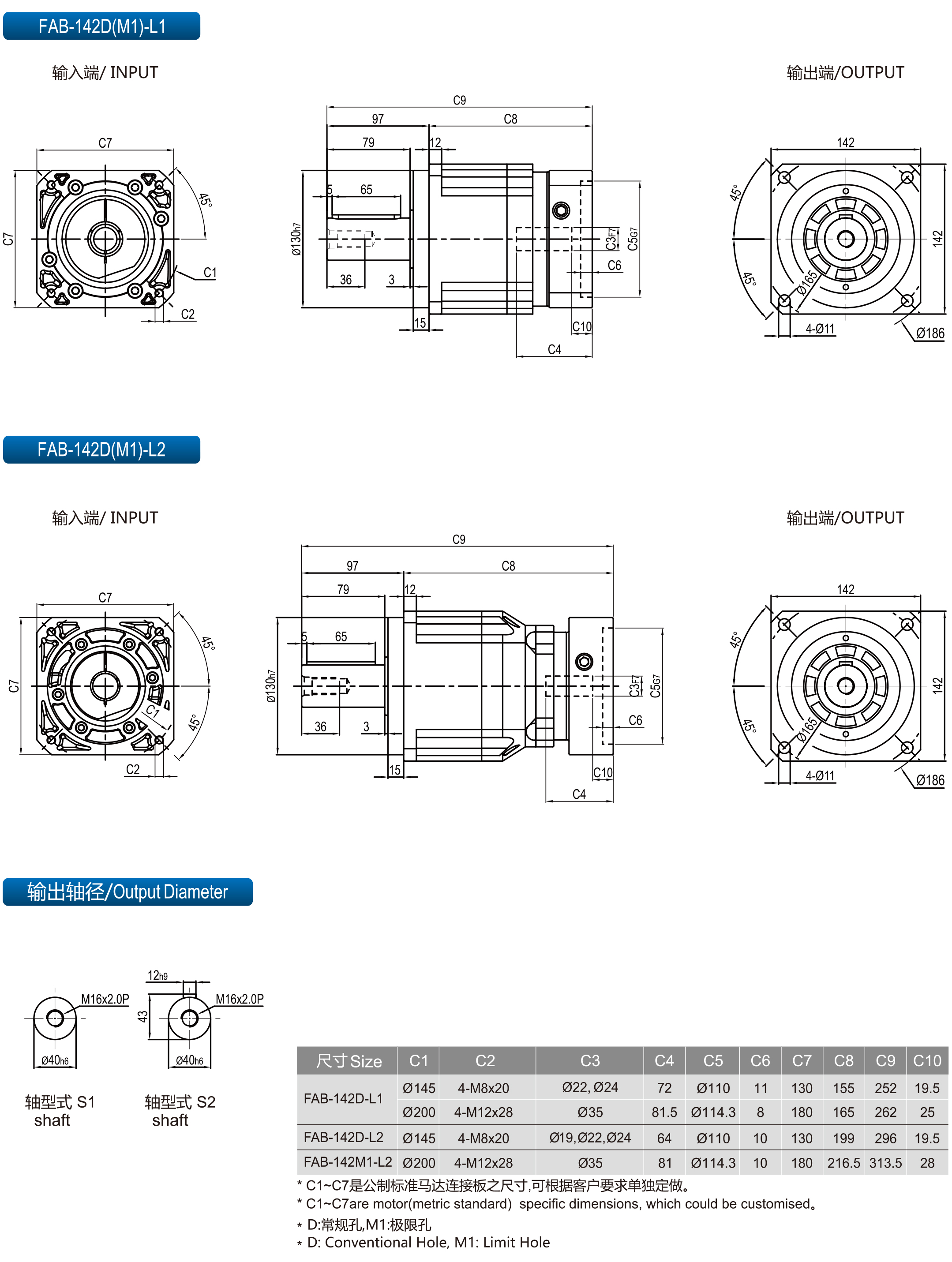

142D
-

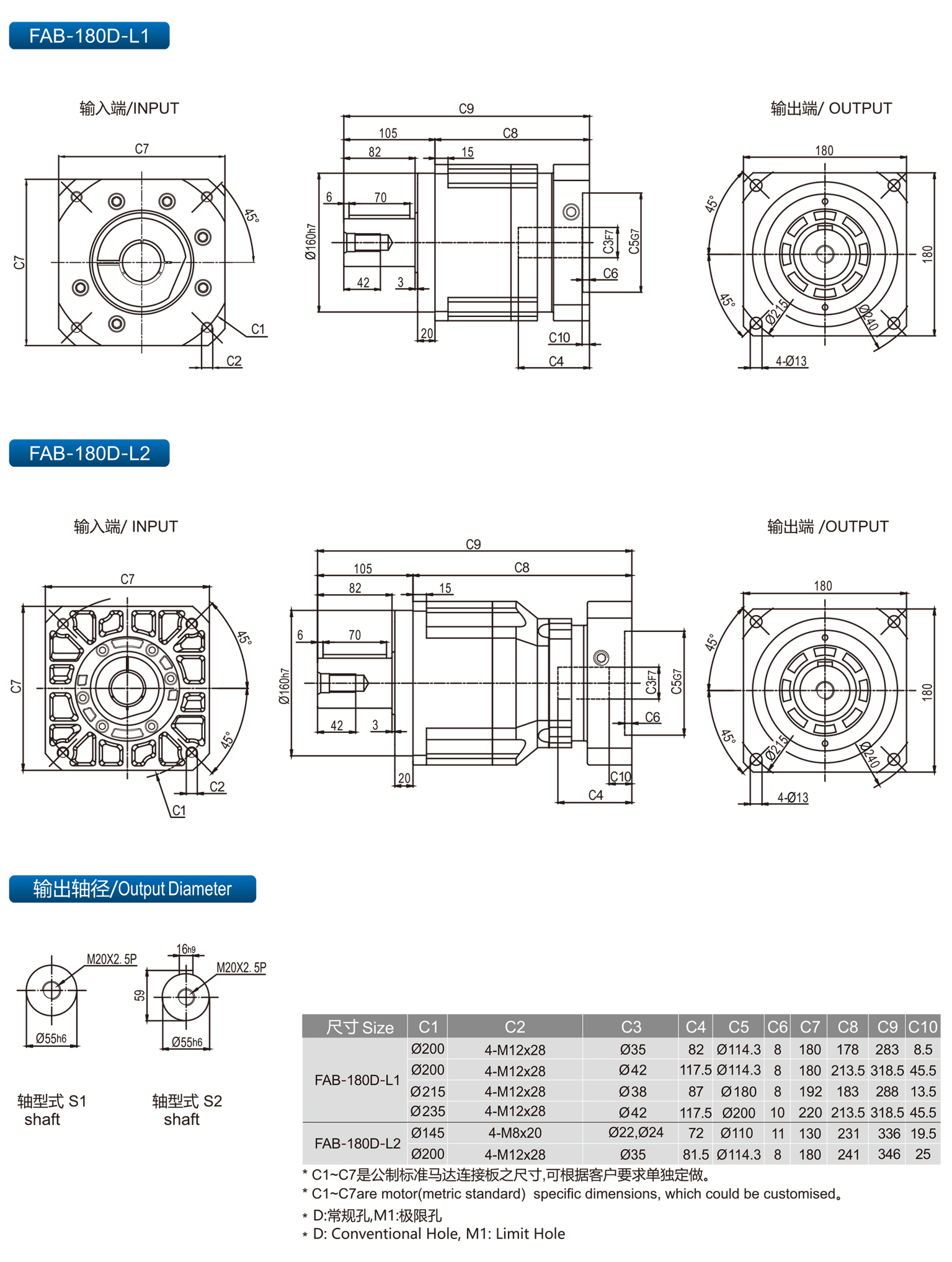

180D
-

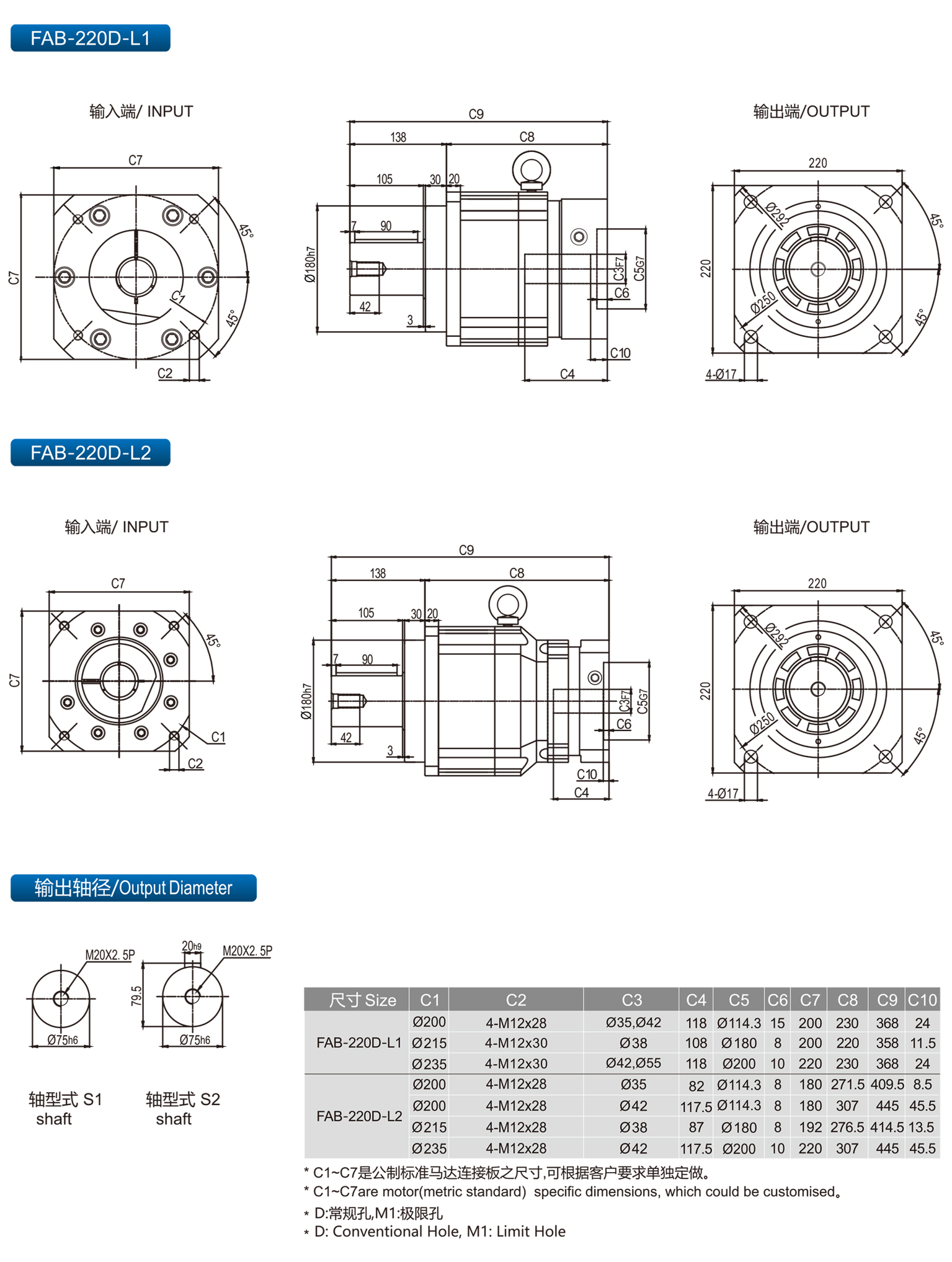

220D
